On Oracle Version 11.2.0.1 ACFS is only supported on the following OS Platforms.

1) OL5 and RHEL5
2) Windows 2003 R1 (64-bit)
3) Windows 2003 R2 (64-bit)

Oracle ACFS Disk Space Usage.

1) Upto 64 million files in a file system.
2) 63 snapshots.
3) 64 Mounts on 32-bit systems.
4) 256 Mounts on 64-bit systems.

For this demonstration i am using RHEL5.4 with Oracle 11.2.0.1.

Note: RedHat variants with "UEK" kernel are not supported on Oracle 11.2.0.1.


Launch ASMCA as the grid user.

[root@rac1 ~]# xhost +
access control disabled, clients can connect from any host

[root@rac1 ~]# su - grid
[root@rac1 ~]# asmca





Click on create in the DiskGroups section and Create a DiskGroup for cluster file system.





Go to Volumes section and create a volume out of the disk group we had created
earlier.

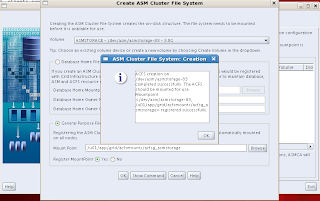

Go to ACFS cluster file system section and make a mount point.






[root@rac1 ~]# df -h
Code:
Filesystem            Size  Used Avail Use% Mounted on
/dev/sda2              25G   18G  6.7G  73% /
/dev/sda1              99M   14M   80M  15% /boot
tmpfs                1014M  154M  860M  16% /dev/shm
/dev/asm/asmstorage-83
                      3.0G   73M  3.0G   3% /u01/app/grid/acfsmounts/acfsg_asmstorage

As you can see our new filesystem is mounted on /dev/asm/asmstorage-83.

Now we can use it to store general purpose Non Oracle files.

ACFS SNAPSHOTS

With ACFS you can also take snapshots of your mount points.
This feature is somewhat similar to virtual machine or disk snapshots.

How snapshots work ?.

Suppose there is some data in the ACFS mount point which needs to be saved.
This can be done by taking a snapshot using "/sbin/acfsutil" command.

After taking the snapshot if any modifications are done to the files
in ACFS mount points then all the original pre-modified blocks relating
to these files are automatically copied in the snapshot directory which
we had created earlier.

This behavior is somewhat similar to the read consistency concept which
is achieved with the aid of Undo Tablespace.

So, in order to rollback the changes you to replace the files in the
mount point from the one's which are located in the snapshot directory.

Example:

[root@rac1 ~]# cd /u01/app/grid/acfsmounts/acfsg_asmstorage/
[root@rac1 acfsg_asmstorage]# ls
lost+found
[root@rac1 acfsg_asmstorage]# vi test.txt
sample data needed to be saved.

Create snapshot of the mount point.

[grid@rac1 ~]$ /sbin/acfsutil snap create mysnap1 /u01/app/grid/acfsmounts/acfsg_asmstorage
acfsutil snap create: Snapshot operation is complete.


[grid@rac1 acfsg_asmstorage]$ vi test.txt
sample data needed to be saved.
wrong data entered

Compare the file in the snapshot and the one which was modified.

[grid@rac1 ~]$ cat /u01/app/grid/acfsmounts/acfsg_asmstorage/test.txt
sample data needed to be saved.
wrong data entered

[grid@rac1 ~]$ cat /u01/app/grid/acfsmounts/acfsg_asmstorage/.ACFS/snaps/mysnap1/test.txt
sample data needed to be saved.
